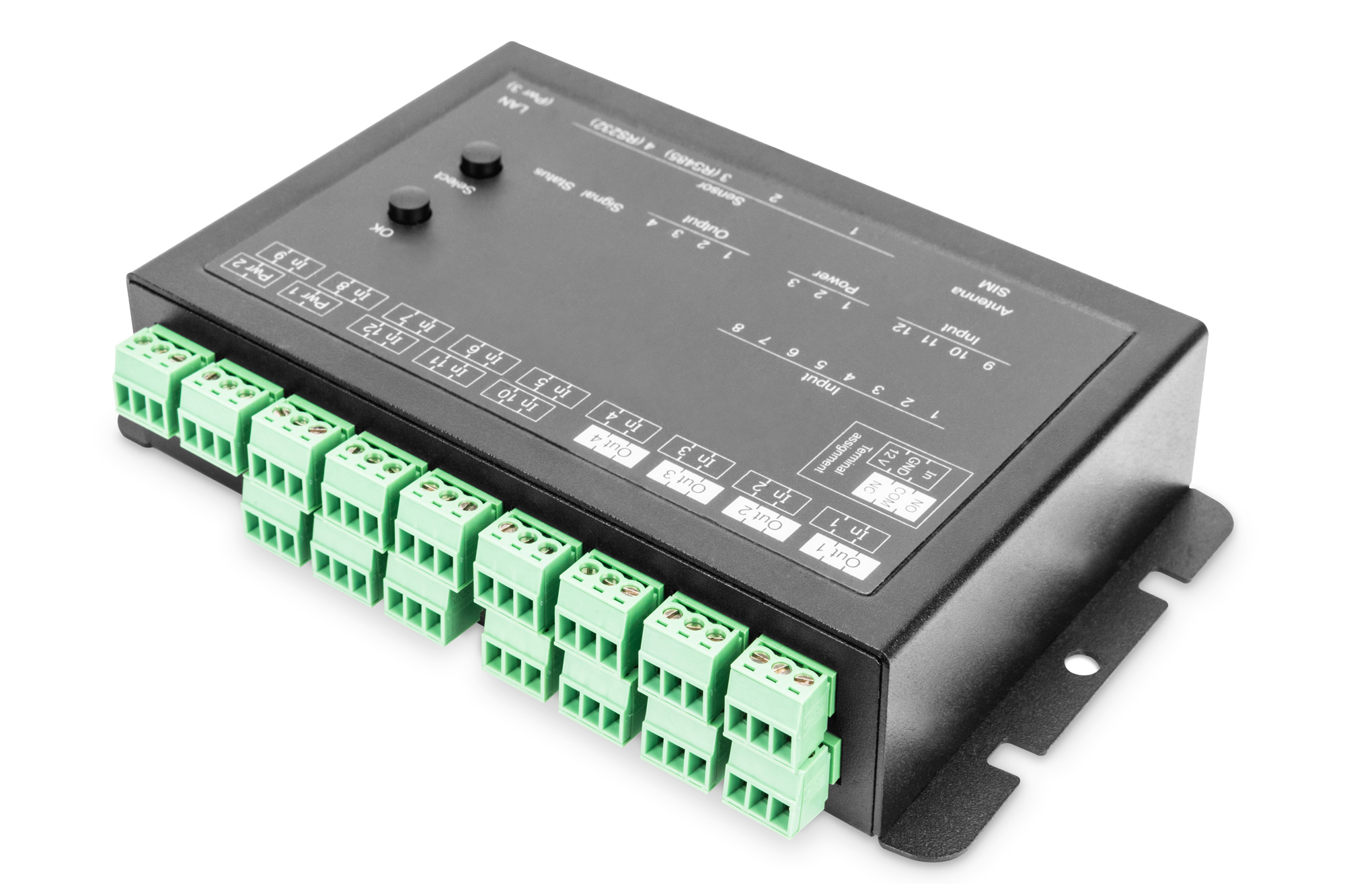

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input

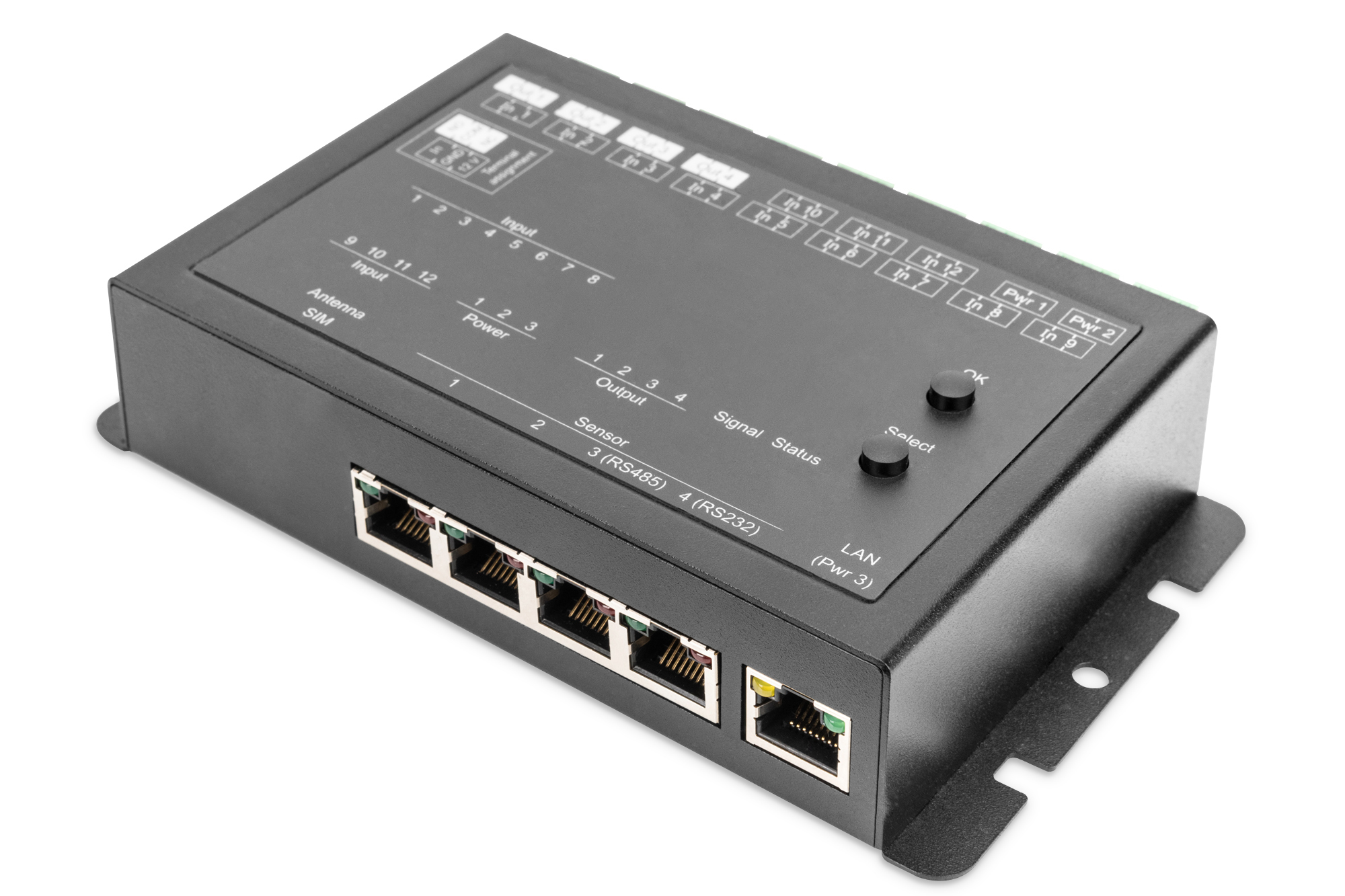

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input - Afbeelding 2

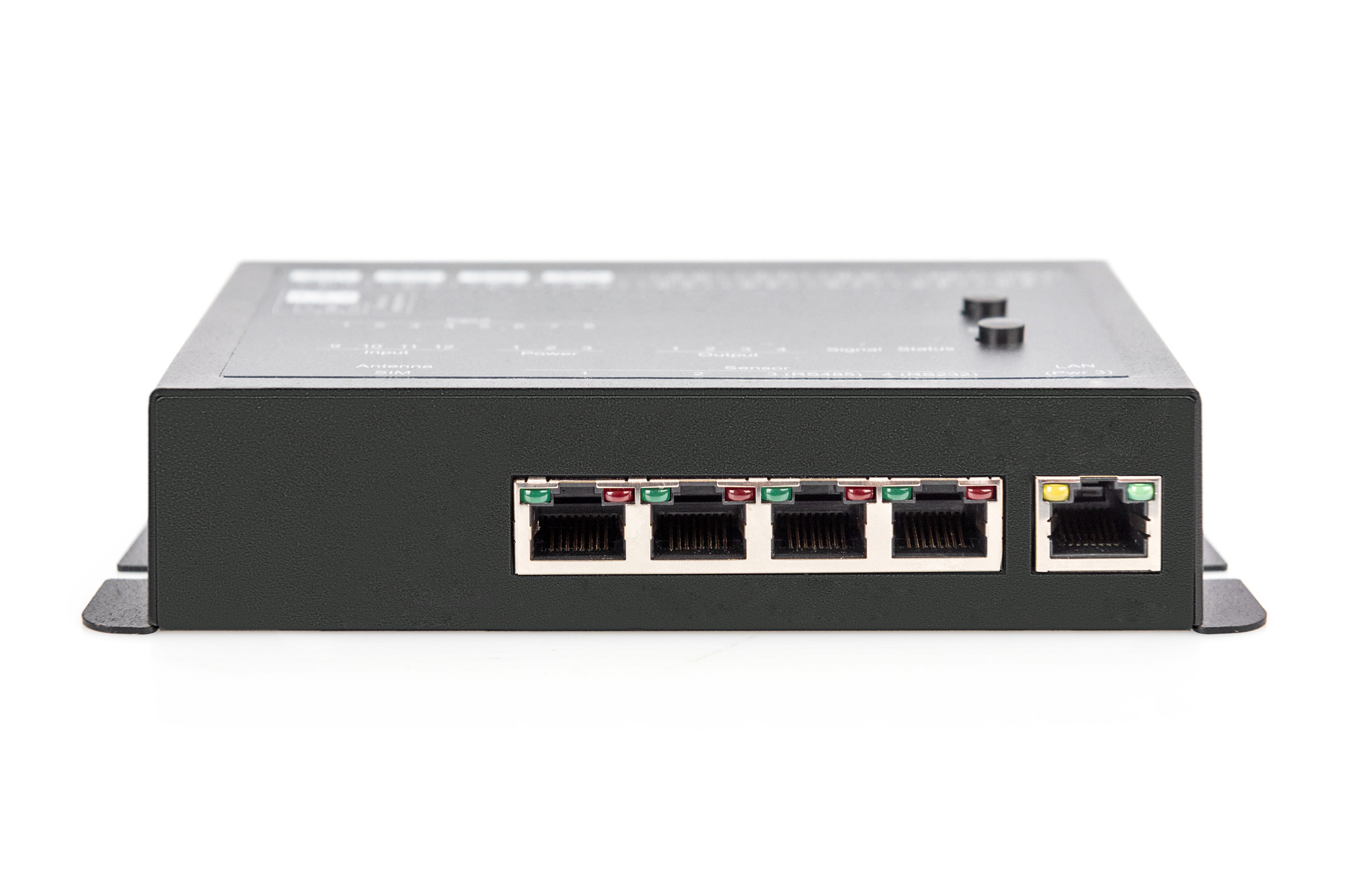

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input - Afbeelding 3

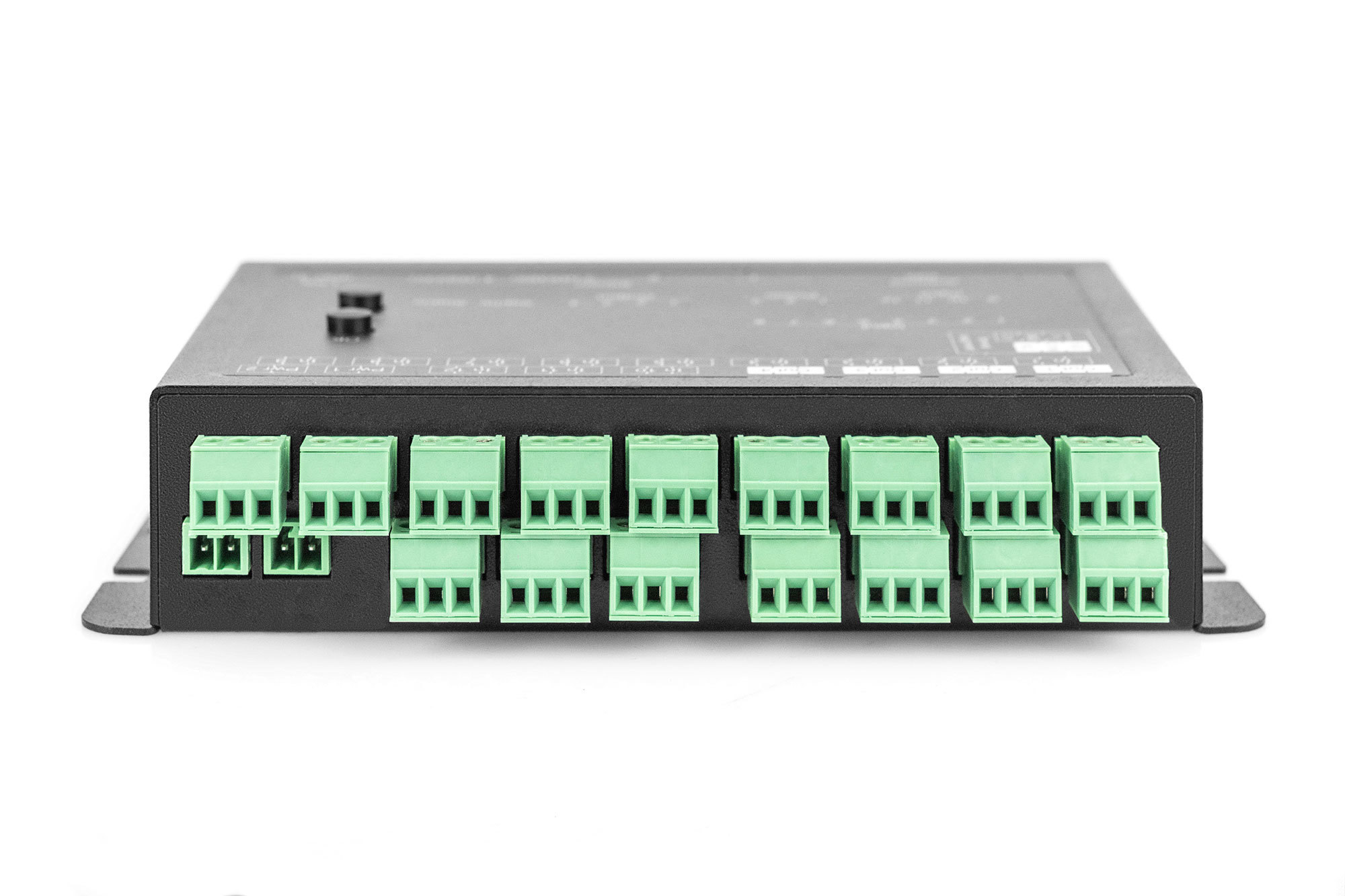

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input - Afbeelding 4

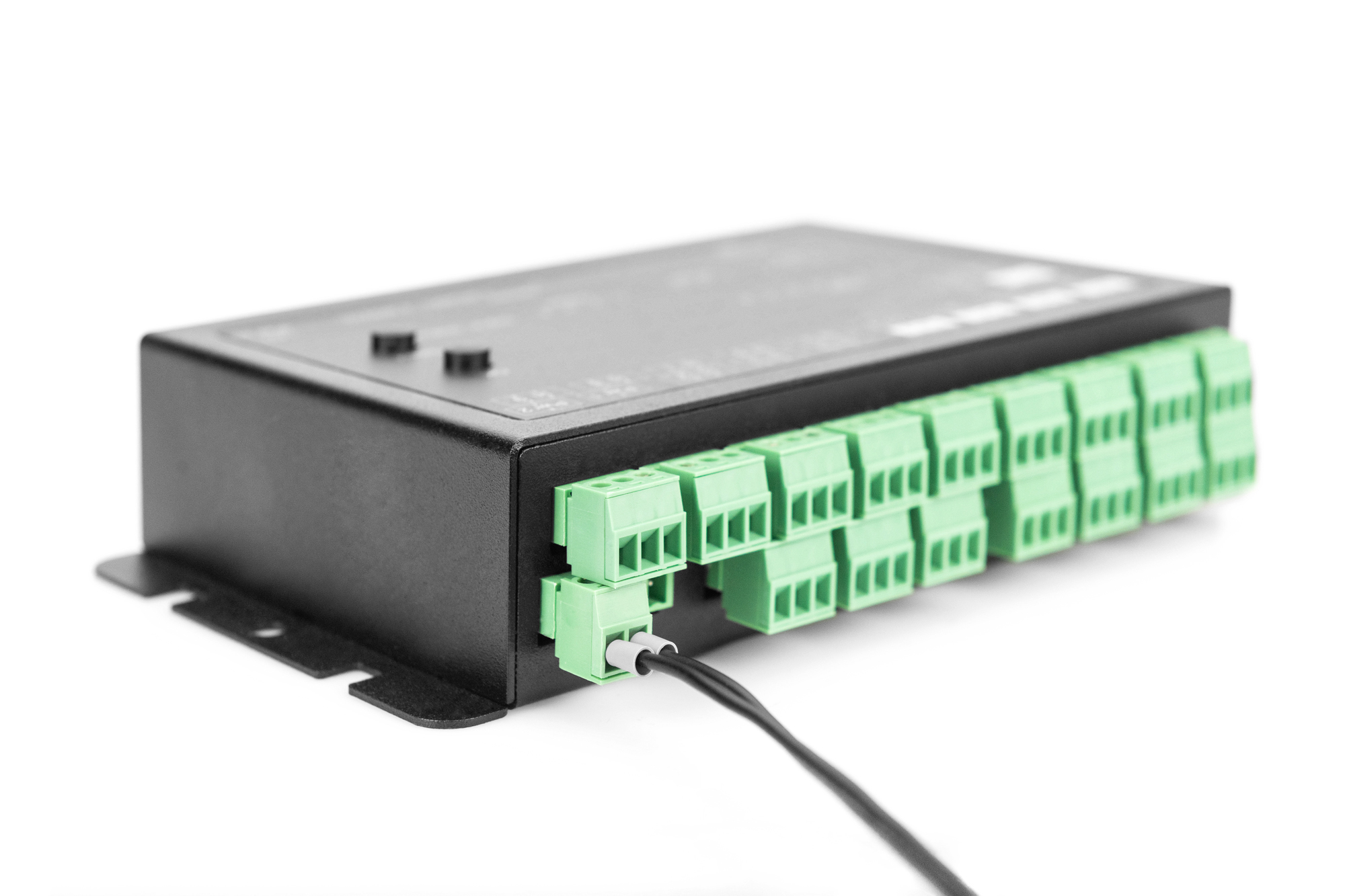

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input - Afbeelding 5

GUDE Basic Monitoring System, 4 x Relay Output, 12 x Signal Input

Monitoring system with 4 relay outputs and 12 passive signal inputs – Supports remote maintenance

SKU: 2111-1 Categorieën: Netwerk- en serverkasten, Stekkerdozen (PDU) Merk: Diverse

Beschrijving
Aanvullende informatie

The Basic Monitoring System from GUDE offers various options for remote access via the TCP/IP network. The device has 4 individually switchable relay outputs and 12 passive signal outputs for querying NO/NC devices. Each signal input has a triple terminal with ground connection and 12 V connection, eliminating the need for extra cabling work. Two connections for power adapter plugs offer the option of ensuring redundant power supply. The system is equipped with an easy-to-read LED display that provides information such as sensor values, power supply and the status of inputs and outputs. Energy-related information such as power, voltage, total energy consumption, total output and power factor are measured. Thanks to its 4 sensor connections, the device can be expanded with optionally available sensors to form a monitoring system that can report the environmental temperature and humidity as well as air pressure, leaks and smoke. The stable metal housing features versatile options for mounting.

Gewicht	0,57 kg
Afmetingen	24 × 31 × 4 cm
Beschrijving	• Supports remote access via web, SNMP or Telnet • Switching of 4 floating relay outputs depending on sensor threshold values or inputs • Monitoring of 12 passive signal inputs (12 VDC) • 2 inputs for redundant power supply (12 VDC) • 4 connections for optional sensors (temperature, humidity and air pressure) • Supports HTTP, HTTPS, Email (SSL,STARTTLS), DHCP, Syslog • IPv6 ready, SNMPv1, v2c, v3 (Get/Traps), Radius and Modbus TCP-protocol support • Easy-to-read LED display to show IP address, sensor values and error messages • Notification via email, Syslog and SNMP traps depending on the configured threshold values for sensor measurement as well as for signal inputs • Sturdy sheet steel housing with versatile mounting options
Technische details	• Kleur: zwart, RAL 9005 • Metered Power Distribution Unit (PDU): false • Gemonteerd: true • Monitoring of input current, output current, voltage, total energy consumption and total output • Easy mounting on profile rails thanks to optional mounting clip • Relay with high contact reliability even under small loads • Each signal input has a 12 V connection to supply NO/NC devices • 4-channel watchdog to monitor the connected devices • 2 x Connections for external plug adapters (industrial terminal, 2-way) • 4 x Switch outputs, floating, 36 V, 3 A max. (industrial terminal, 3-way) • 12 x Passive signal inputs (industrial terminal, 3-way) • 4 x Sensor connections (RJ45) for optional sensors (temperature, humidity and air pressure sensors) • 1 x network connection 10/100 Mbit/s (RJ45) • Supports HTTP, HTTPS, Email (SSL,STARTTLS), DHCP, Syslog • IPv6 ready, SNMPv1, v2c, v3 (Get/Traps), Radius and Modbus TCP-protocol support • Power supply: Power adapter (12 V DC, 1 A) with industrial terminal (2-way) • Operating temperature: 0 °C to 50 °C • Storage temperature: -20 °C to +70 °C • Operating humidity: 0% – 95% (non-condensing) • Housing: Powder-coated sheet steel • Dimensions: 139 x 91 x 34 mm (LxWxH) • Weight: 440 g • Color: Black
Land van herkomst	DE
